J41F燃气法兰截止阀具有密封性能稳定、使用安全可靠、耐腐蚀性强、无介质内、外漏以及操作轻便等特点，成功解决了化工管道用普通阀门耐腐蚀性能差、壳体易穿孔以及密封性能差、易泄露的难题。特别适用于化工行业氨气，燃气管道的传送，并满足长期可靠使用的要求，其密封性、可维修性、安全性等。广泛应用于冷冻、制冷、化工、石油、食品、冶炼、液化气等行业。
Product Features
- 针对普通阀门耐腐蚀性能差、壳体易穿孔的缺点，根据介质具体特性，氨气专用阀在阀体材料上选用耐腐蚀钢（低温碳素钢添加耐蚀合金元素），可耐氨气、液氨腐蚀，低温可至－40℃，最大限度保证工况条件使用要求。
- 燃气法兰截止阀密封副配对结构型式采用球、平面型，密封自动补偿，达到双重保险的效果，密封性能稳定，无粘着磨损，有效地解决了化工管道用普通阀门密封性能差、易泄露的难题。
- The flange incorporates a tongue-and-groove sealing structure, ensuring absolutely reliable sealing even under fluctuating pipeline pressures.
- The upper sealing assembly employs multi-stage PTFE sealing materials to form a composite seal, ensuring no medium leakage from the packing gland throughout the valve's service life. This eliminates the inherent weaknesses of conventional valve packing gland seals—such as susceptibility to leakage and potential accidents—that are prone to occur.
Product Parameters
Product Model | J41F-25C |
Valve Body Material | Cast Steel |
Nominal Pressure | ≤2.5Mpa |
Applicable Media | Ammonia, Ammonia Liquid, etc. |
Applicable Temperature | ≤150°C |

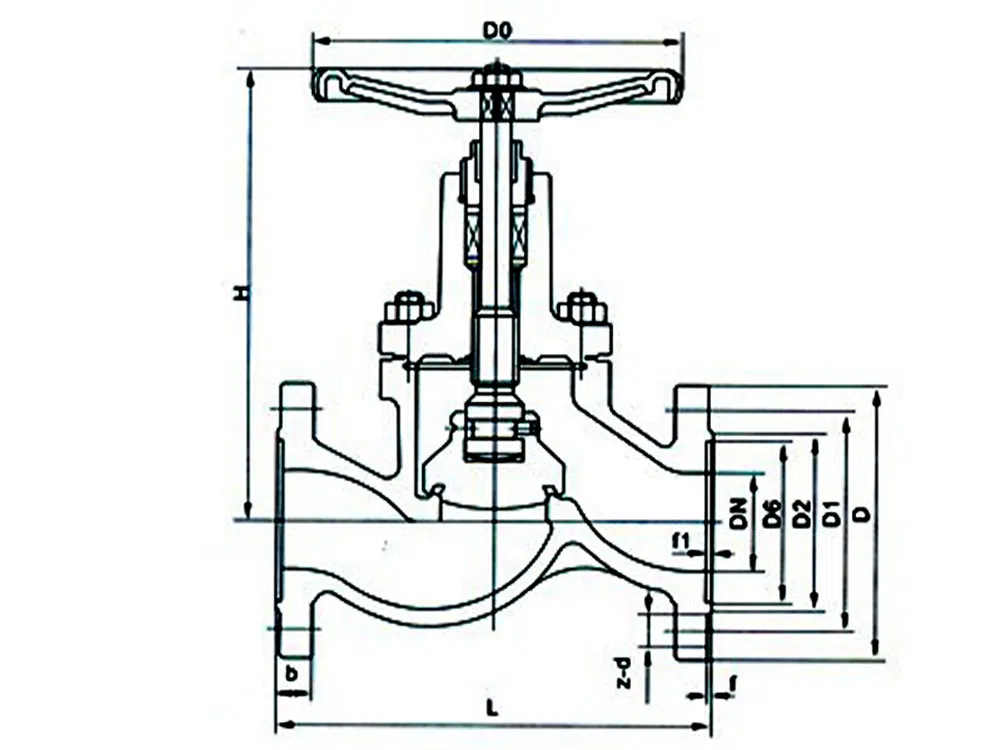

Product Size Reference
DN | L | D | D1 | D2 | D6 | b | f | f1 | z-d |
15 | 130 | 95 | 65 | 45 | 40 | 16 | 2 | 4 | 4-14 |
20 | 150 | 105 | 75 | 55 | 51 | 18 | 2 | 4 | 4-14 |
25 | 160 | 115 | 85 | 65 | 58 | 18 | 2 | 4 | 4-14 |
32 | 180 | 135 | 100 | 78 | 66 | 20 | 2 | 4 | 4-18 |
40 | 200 | 145 | 110 | 85 | 76 | 20 | 3 | 4 | 4-18 |
50 | 230 | 160 | 125 | 100 | 88 | 22 | 3 | 4 | 4-18 |
65 | 290 | 180 | 145 | 120 | 110 | 24 | 3 | 4 | 8-18 |
80 | 310 | 195 | 160 | 135 | 121 | 26 | 3 | 4 | 8-18 |
100 | 350 | 230 | 190 | 160 | 150 | 30 | 3 | 4.5 | 8-23 |
125 | 400 | 270 | 220 | 188 | 176 | 32 | 3 | 4.5 | 8-25 |
150 | 480 | 300 | 250 | 218 | 204 | 32 | 3 | 4.5 | 8-25 |
200 | 600 | 360 | 310 | 278 | 260 | 34 | 3 | 4.5 | 12-25 |
250 | 650 | 425 | 370 | 335 | 310 | 36 | 3 | 4.5 | 12-30 |
300 | 750 | 485 | 430 | 390 | 364 | 40 | 3 | 4.5 | 16-30 |
