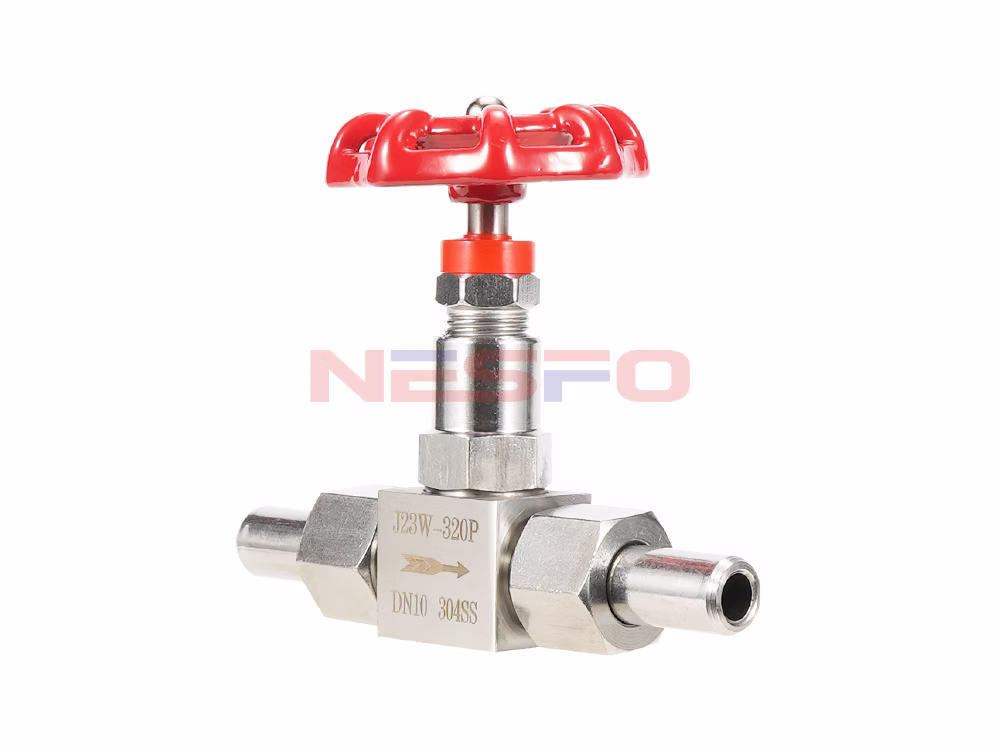

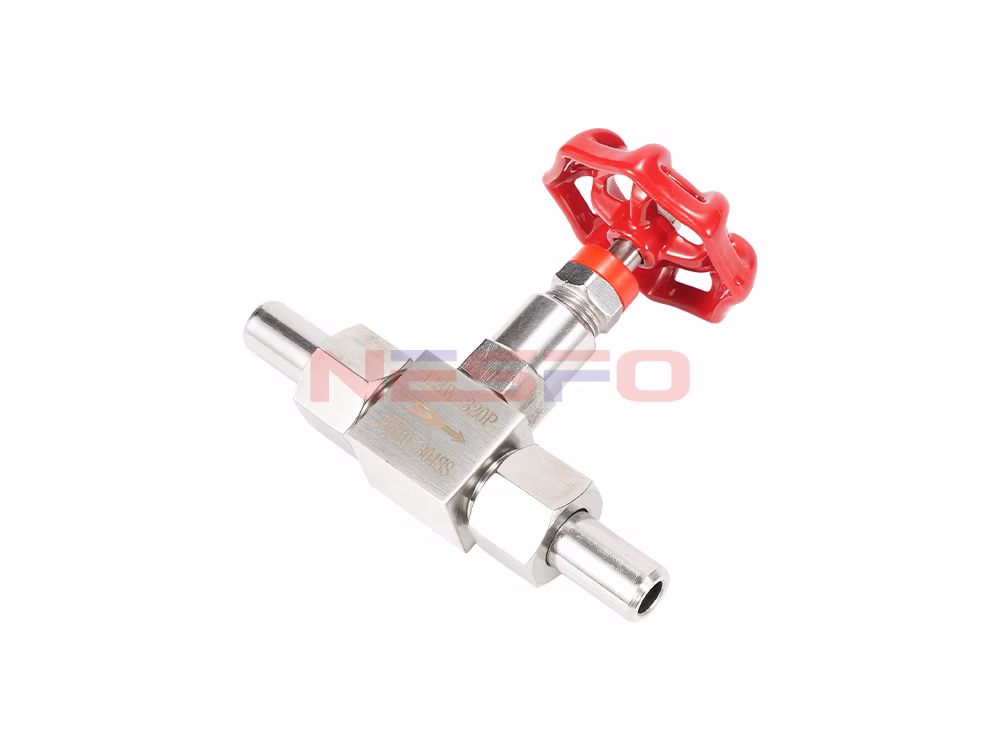

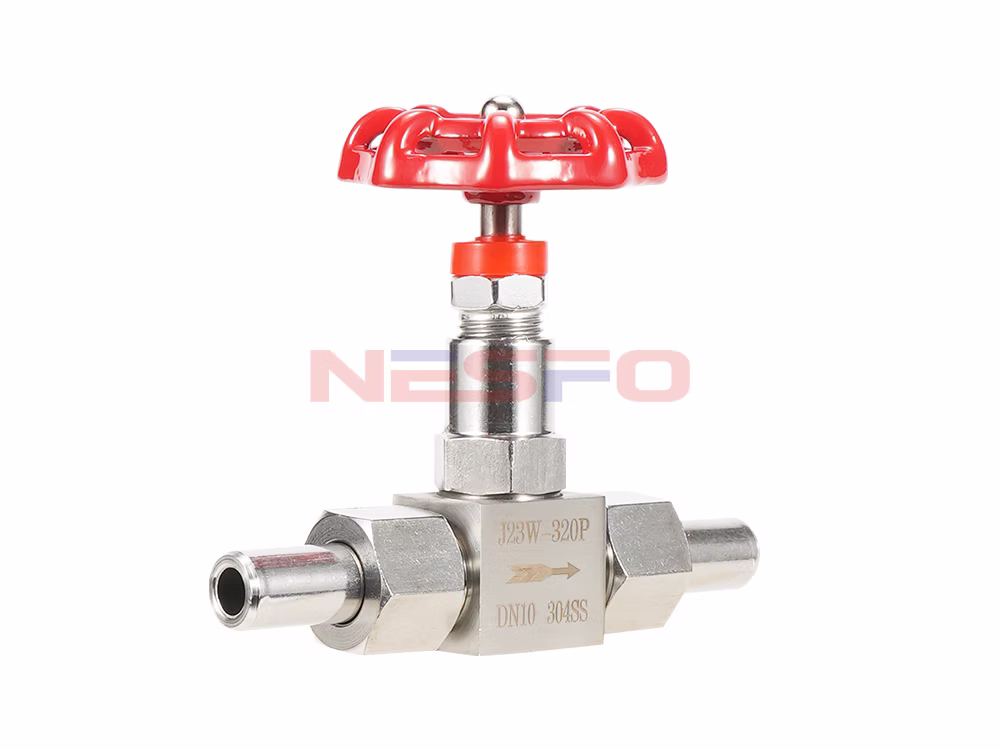

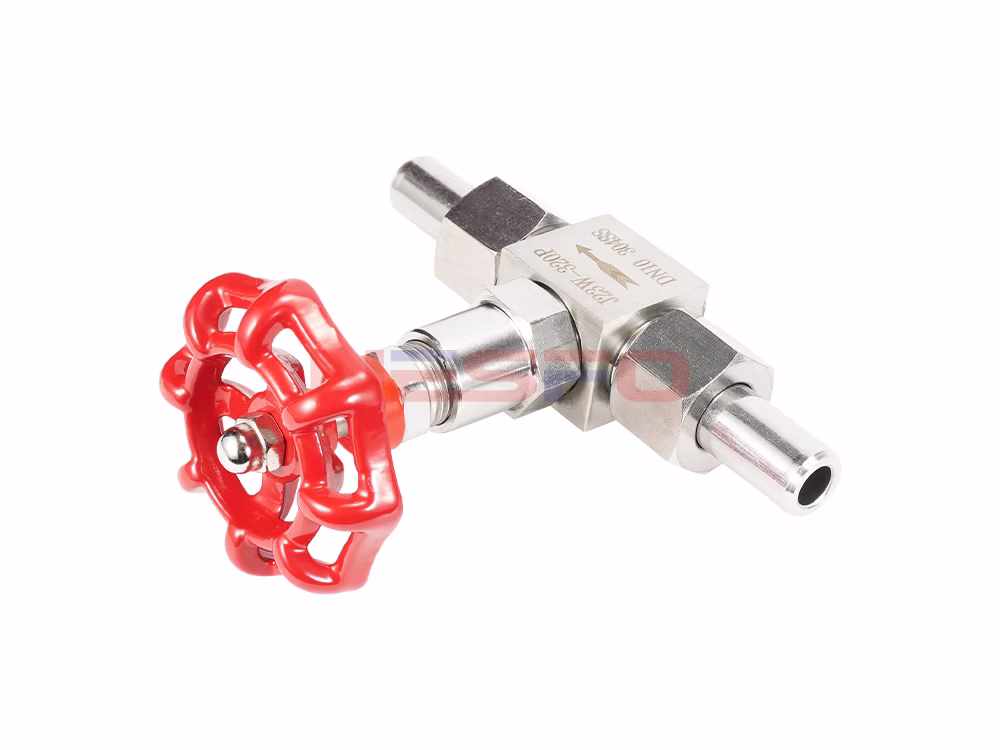

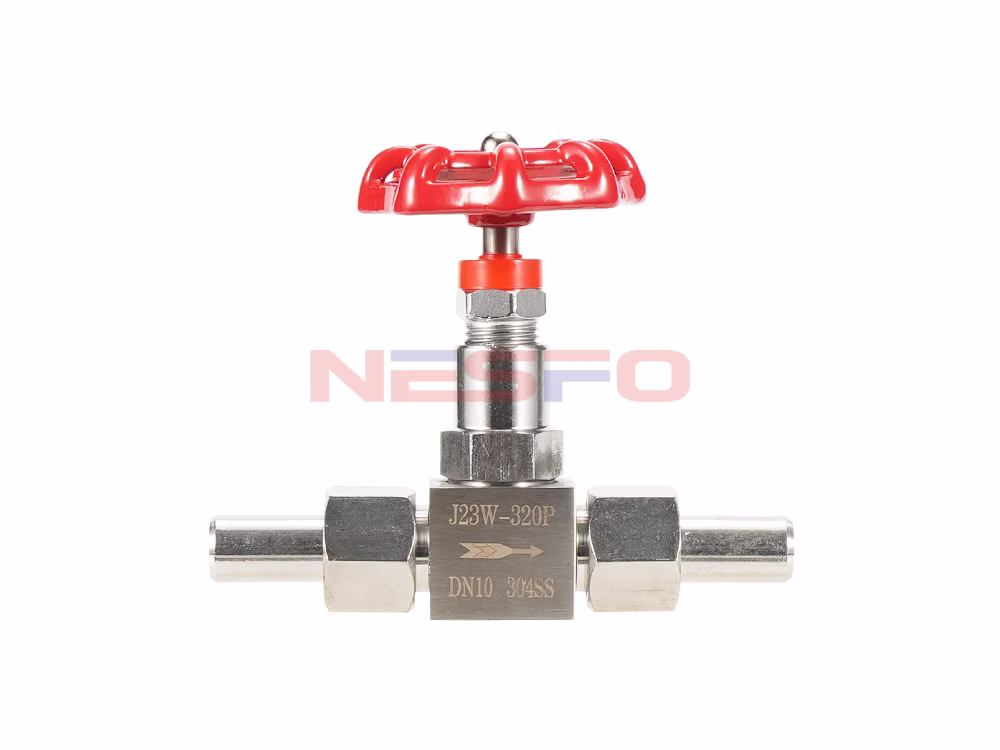

304 Stainless Steel Butt-Weld Needle Valve J23W-160P

Product Description

The J23W butt-weld needle valve operates on the same principle as a globe valve. Its trim consists of a conical needle-shaped core with a matching conical sealing surface. The valve core moves up and down along the flow centerline to open, close, or throttle the flow. Closing is achieved by turning the handwheel clockwise, and opening by turning it counterclockwise. The valve features a non-rising stem with a rotating handwheel (the stem rotates and travels with the handwheel, and the locknut is mounted on the valve body). It is widely used in chemical, petrochemical, petroleum, papermaking, mining, power generation, LPG, food, pharmaceutical, water supply and drainage, municipal engineering, mechanical equipment, electronics, and urban construction industries.

Product Features

1. The structure is simple, making it relatively easy to manufacture and maintain.
2. Short stroke and fast opening and closing times.
3. It provides excellent sealing performance, low friction between sealing surfaces, and a long service life.

Product Specifications

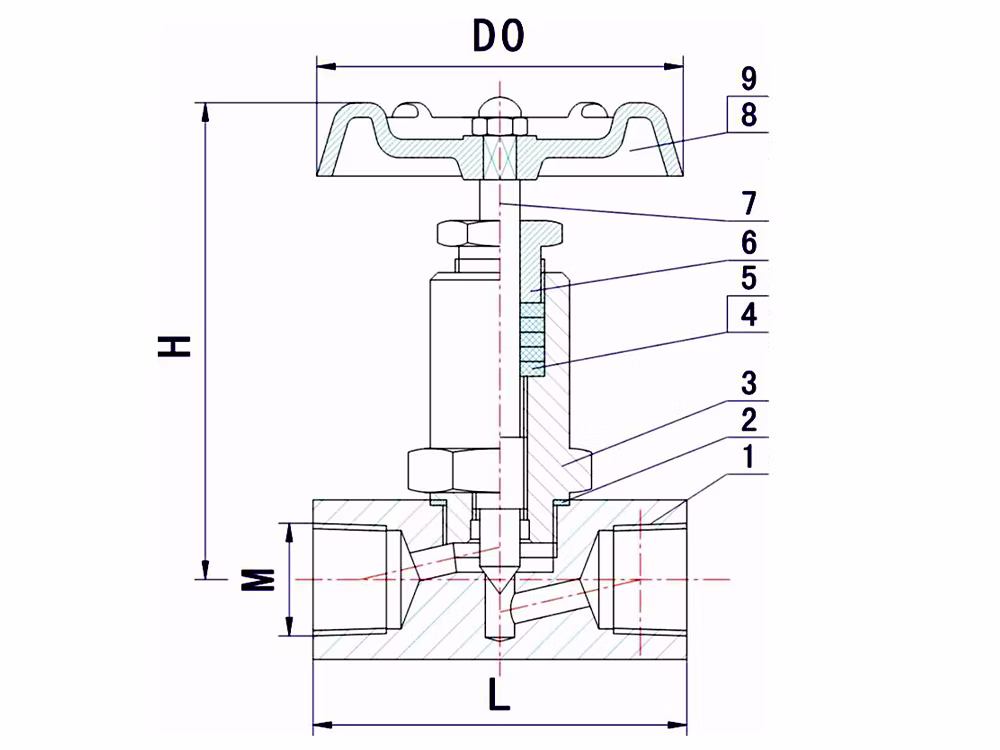

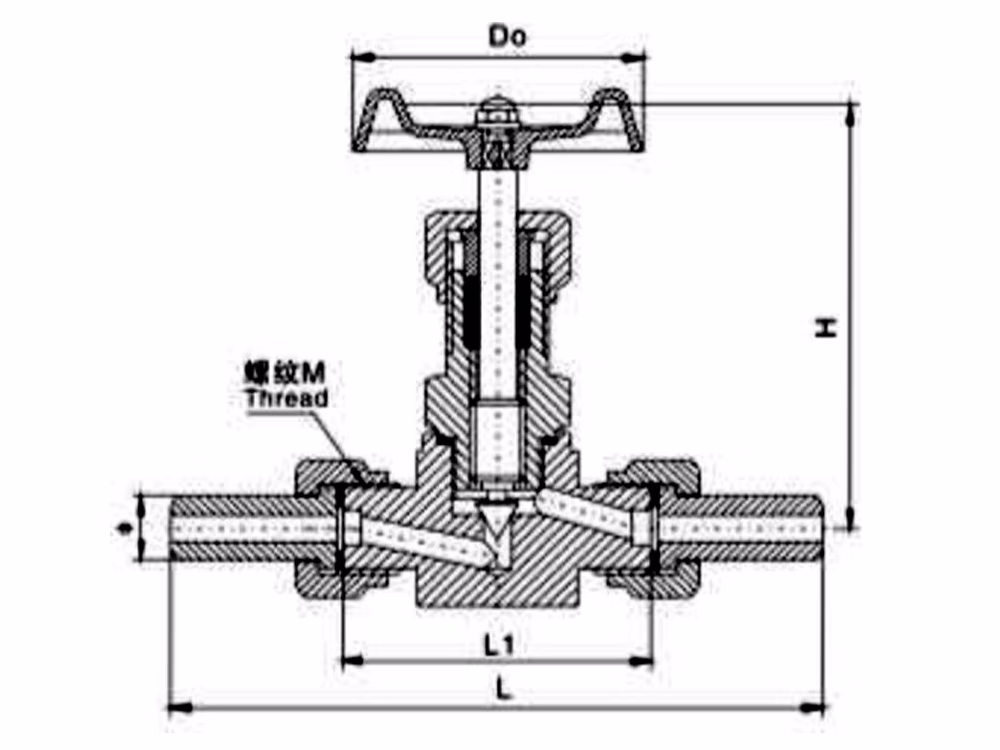

Product Size Guide
