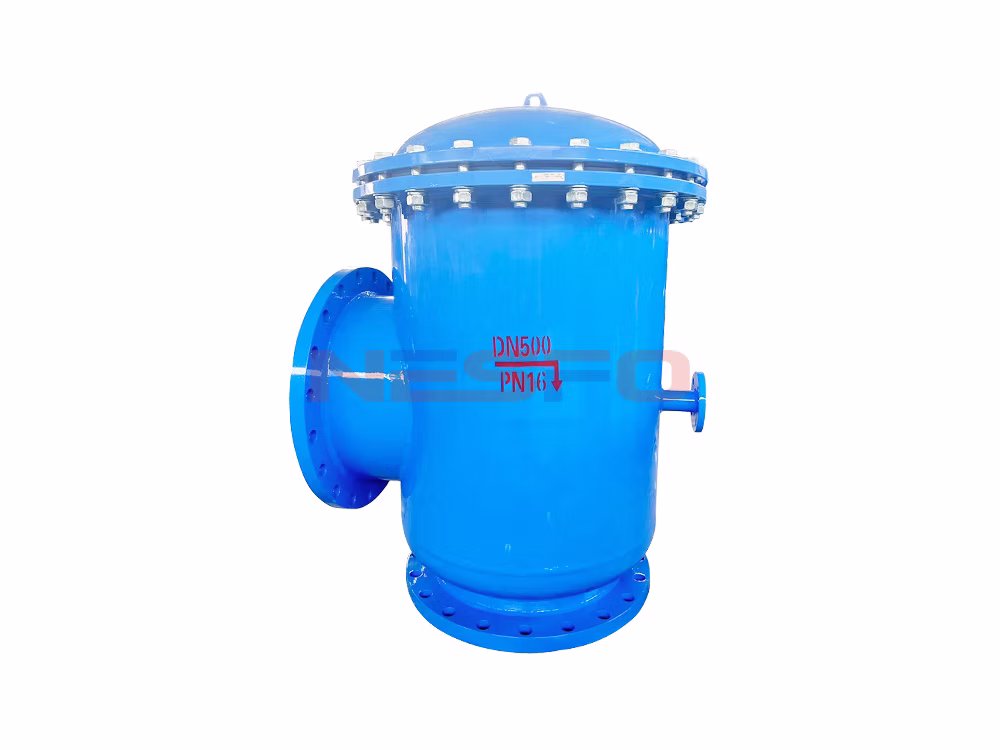

Carbon Steel Angular Diffusion Strainer KRG-16C

Product Description

The KRG diffusion strainer is a new type of pump inlet strainer that integrates pipeline debris removal, filtration, elbow fittings, and reducers into a single, comprehensive unit. The diffusion strainer naturally disperses the flow, reducing flow velocity within the pipeline. It further moderates the flow velocity during transit and uses internal guide plates to disperse the fluid and ensure uniform flow velocity distribution, thereby ensuring the long-term, stable operation of the pump.

Key Features

1. The strainer is installed directly at the pump inlet to guide the flow, providing a balanced water flow to the pump and protecting its impeller. It stabilizes the water flow, improves pump efficiency, and extends the pump’s service life.
2. Diffusion strainers utilize stainless steel mesh with a large filtration area, which reduces pressure loss and resistance. They are suitable for a variety of installation conditions and can be installed horizontally or vertically, minimizing the required installation space and reducing installation costs. These strainers serve as replacements for 90-degree elbows, reducers, other strainers, and flow straightening tubes.

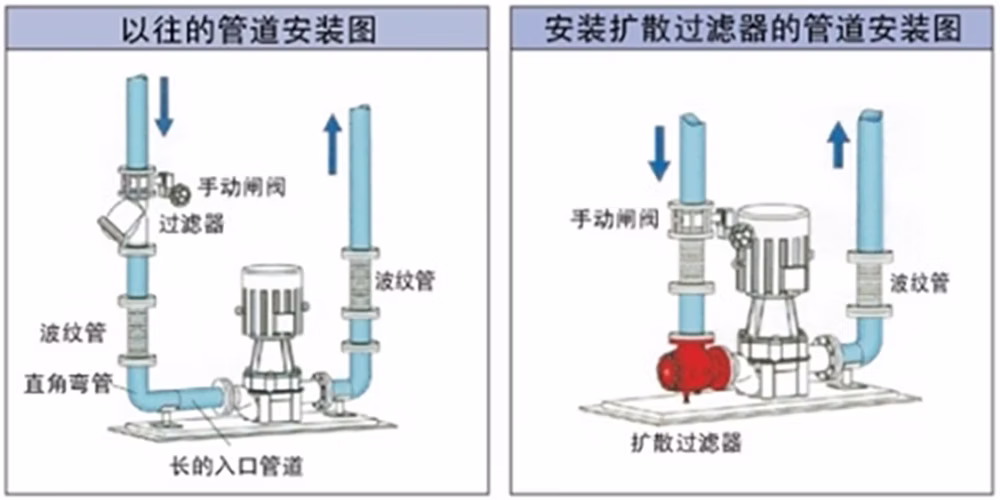

Comparison of Pipe Installation Diagrams

1. Shorten the inlet pipe to reduce the load on the pump.
2. The use of flanged connections reduces labor costs.
3. Reduce project time and minimize installation space.

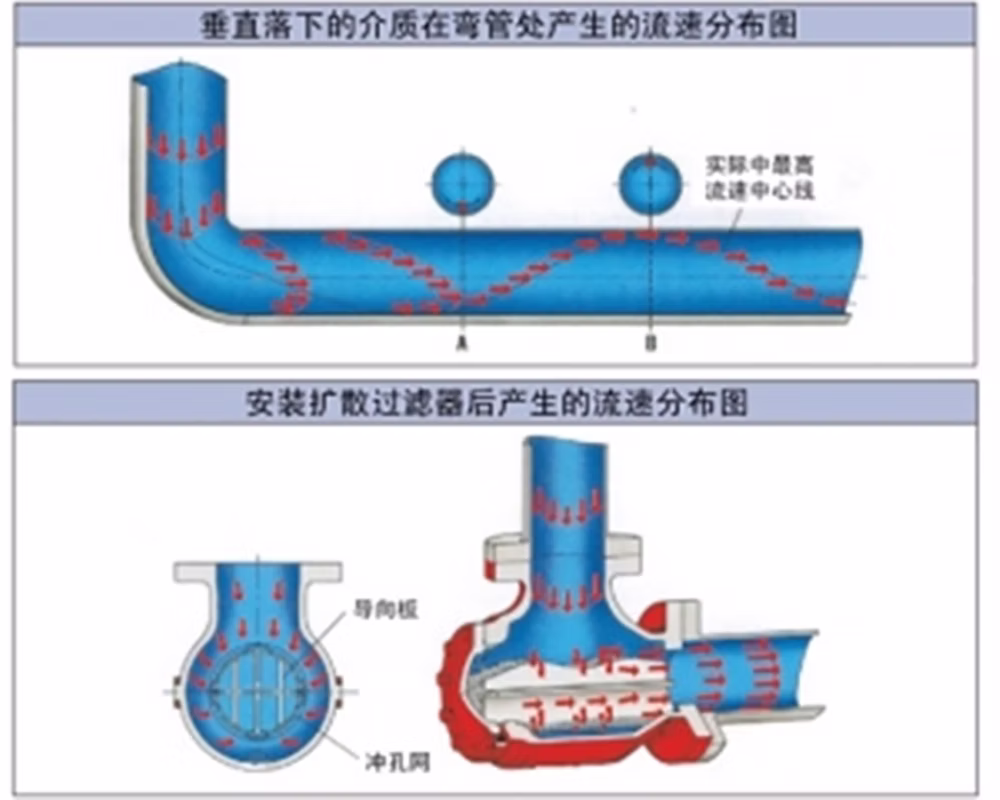

Comparison of Schematic Diagrams of Medium Flow Velocity Distributions

1. In pipelines where flow conditions change abruptly between points A and B, irregular flow velocities are drawn into the pump, creating variable heavy loads that result in vibration, cavitation, and excessive noise, thereby shortening the pump’s service life.
2. Installing a diffuser strainer reduces the flow velocity within the piping without affecting the flow rate. The internal baffles evenly distribute the flow velocity, ensuring the long-term, stable operation of the pump.

Applications

Widely used in: machinery and equipment, chemical processing equipment, general-purpose components, industrial equipment, pharmaceutical equipment, general-purpose equipment, and petrochemical equipment; as well as power generation equipment, metallurgical and powder processing equipment, mining equipment, municipal equipment, and electronic industrial equipment, among others.

Product Specifications

Product Size Guide
